➜ Google Sheets Tip #282: Timeline Views a.k.a. Gantt Charts

Gantt charts are a special type of bar chart, beloved by project managers, that shows activities on a schedule.

They give an overview of all the tasks in a project, set to a timeline. This way, you can see how time is allocated within a project and see what needs to happen and when.

In today's tip, we'll see 2 ways to create Gantt charts: 1) the quick way using Timeline View (which is sadly not available to everyone), and 2) using regular bar charts.

Part 1: Create Gantt Charts with Timeline View

Unfortunately, this feature is NOT available in personal Google Accounts, Nonprofits, or to legacy G Suite customers. See Part 2 on how to create a Gantt chart with a regular bar chart.

The timeline view chart is a special type of chart, under the Insert menu. To use it, you must have data in the correct format.

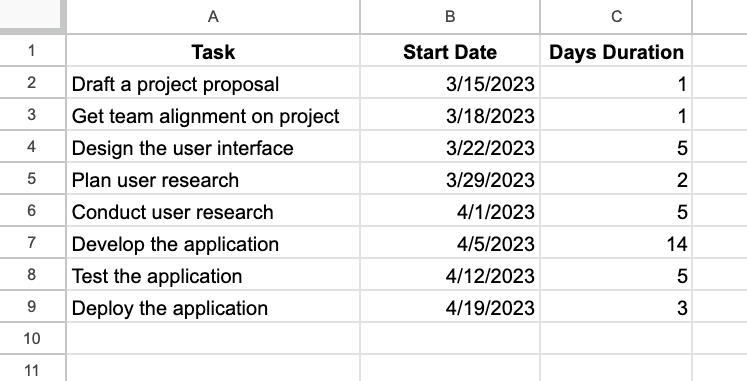

At a minimum, you need three columns containing: 1) a task name, 2) a start date for the task, and 3) an end date (or duration) for the task.

To create a timeline view chart, highlight your data and select the menu:

Insert > Timeline

Check the correct range is selected and click "OK".

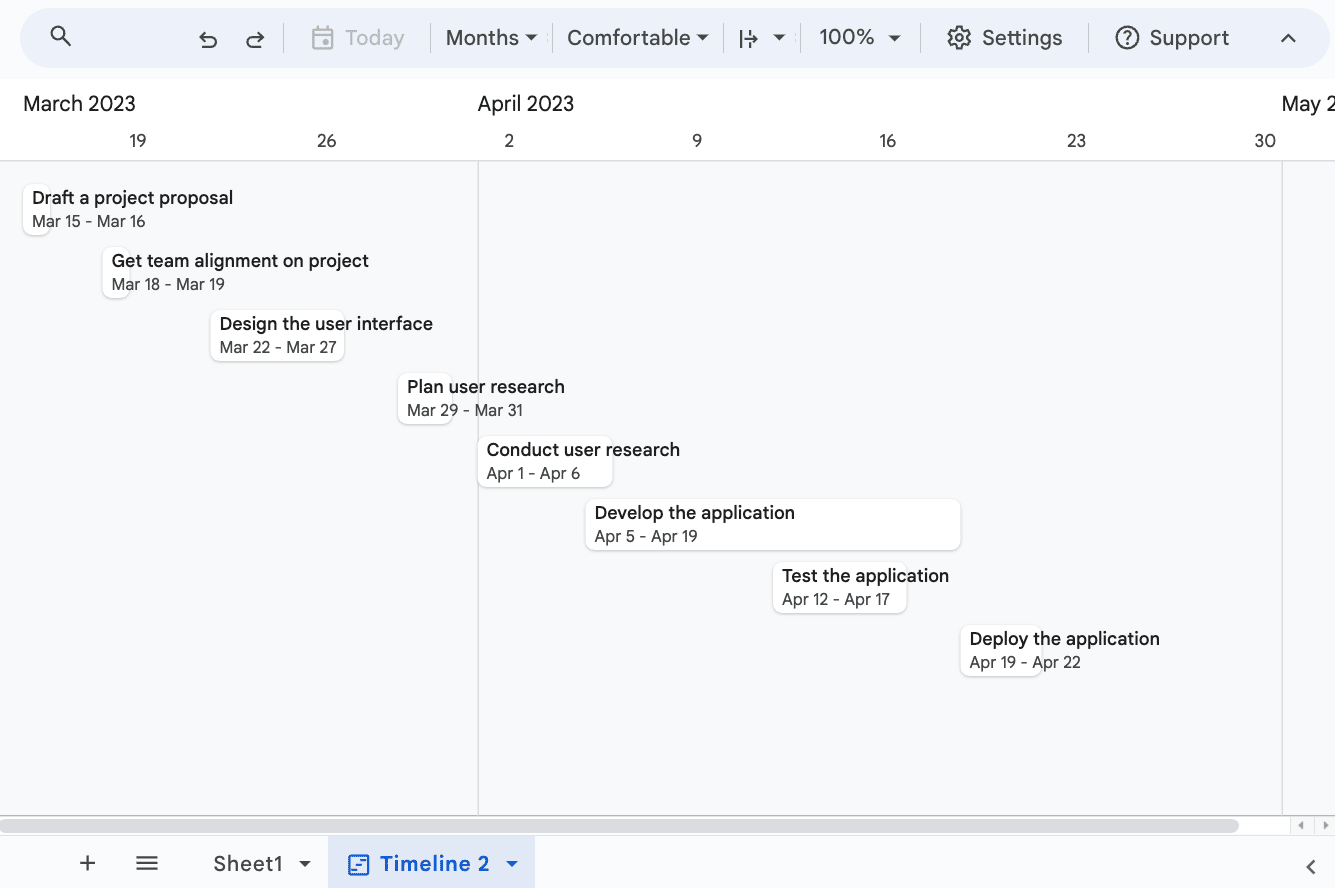

Google creates the timeline view chart in a new sheet:

Advanced Timeline View Features

Go to the "Settings" menu of the Timeline View (the gear wheel above the Timeline View chart).

Use additional descriptive columns in the data to add grouping and labeling to the Timeline View.

The bars can also be color-coded to enhance the visibility of any applied grouping.

Add color to the bars directly in the Timeline View tool (click the bar and change the color in the "Card details" sidebar) or format the underlying data, which is then reflected in the Timeline View.

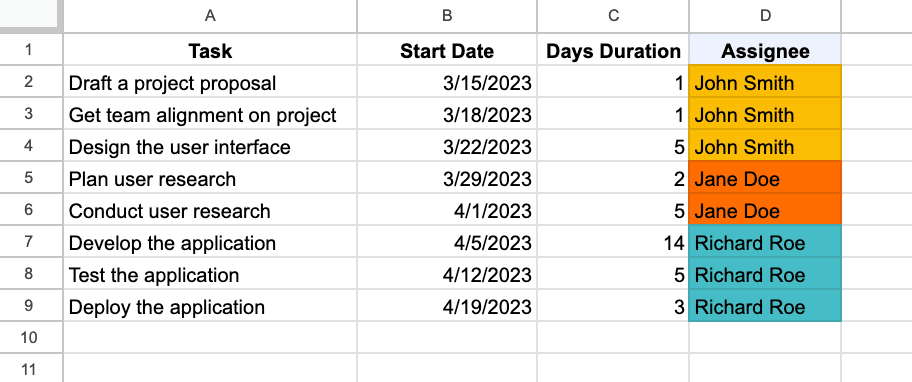

For example, let's add an "Assignee" column with colors to the data:

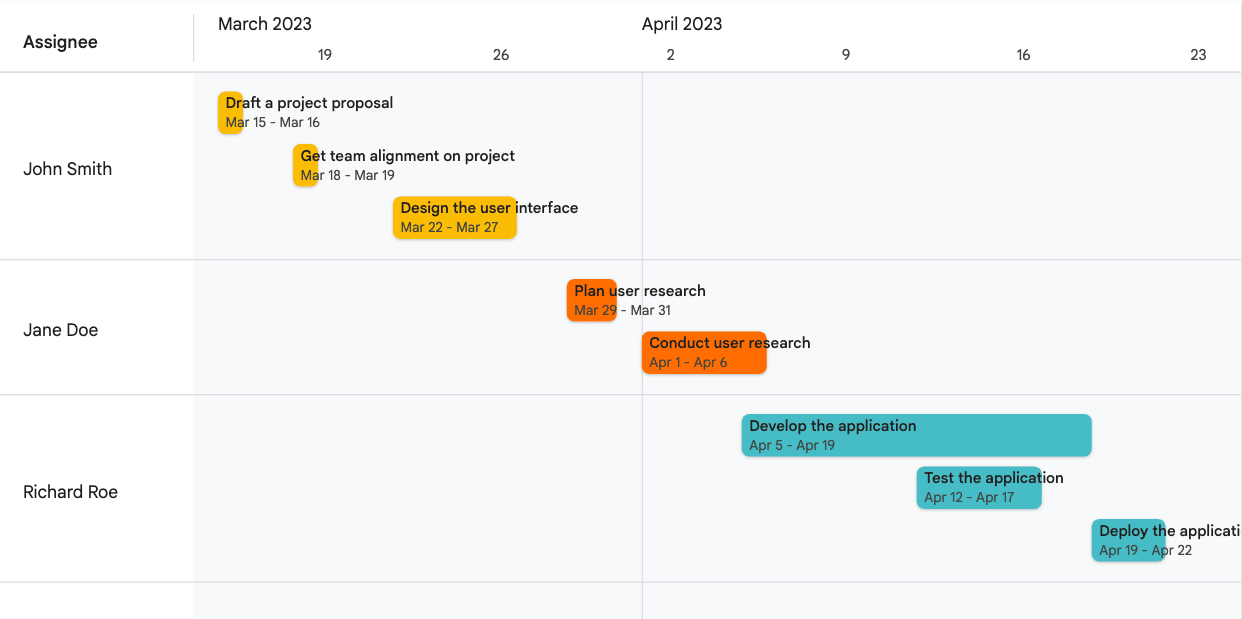

The Timeline View is updated to group by the assignee names and colors:

More info at the Timeline View help page.

Part 2: Create Gantt Charts with Bar Charts

I don't want to leave those of you with personal Google accounts out of the picture, so let's see how we can create a similar outcome with a regular bar chart.

Using the same dataset from part 1, highlight the data and go to:

Insert > Chart

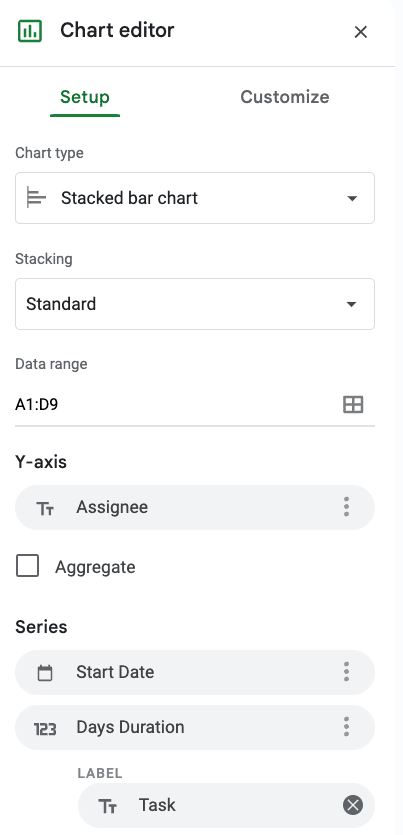

Select the "Stacked bar chart" option in the "Setup" section:

Quick Aside: dates are stored as numbers in spreadsheets, so the date "3/15/2023" is actually the number 45,000 under the hood. (Try changing the formatting of the cell to see this!)

You might notice that the chart axis starts from 0 and goes all the way up to 50,000. This means that the "duration" series is too small to see. We need to fix this axis to start from the first date "3/15/2023", a.k.a. the number 45,000.

So we need to know the number of the earliest date in the dataset. To find it, either format the date cell as a number and make a note of it, or use this formula =N(B2) to get the date as a number.

Under the "Customize" section, set the following options:

• Horizontal axis --> Set the "Min" to the date number (e.g. in my case 45000 to represent 3/15/2023). This ensures that the x-axis starts at the beginning of this first date.
• Legend --> Set "Position" to "None"

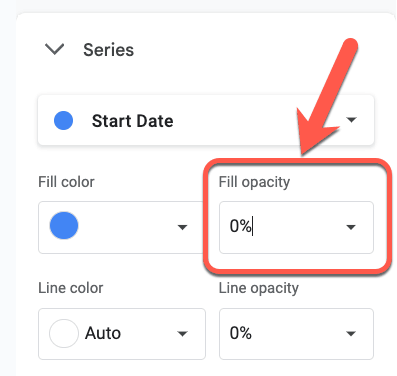

• Series --> Set the "Fill opacity" of the "Start Date" series to 0% to hide the bars

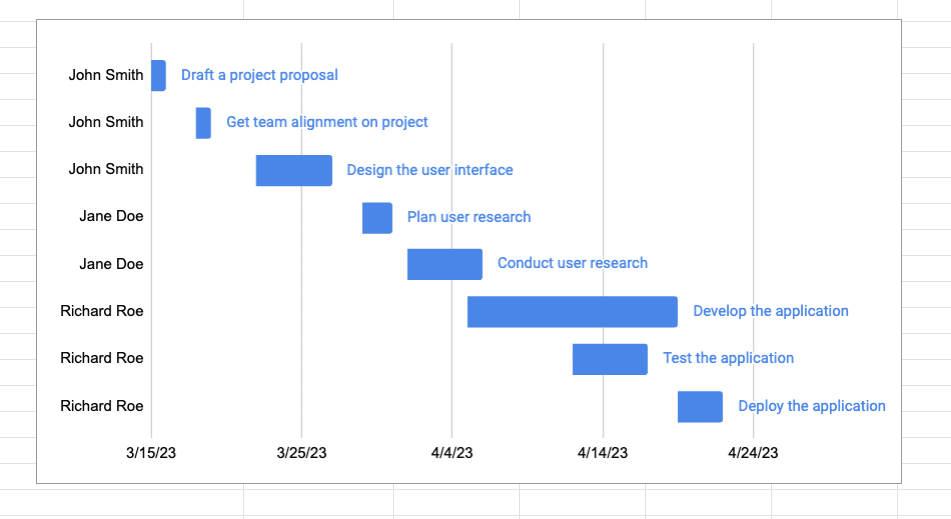

And there we go! Our bar chart now looks like a Gantt chart / Timeline View.
