➜ Google Sheets Tip #277: Create pyramid charts with bar sparklines

A reader recently asked me how to draw a right-aligned pyramid chart in Google Sheets.

What's that, I hear you ask?

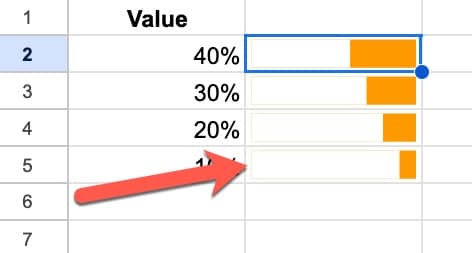

Well, here's an example:

You see them used frequently for population pyramids.

So let's create it, one formula at a time (what I call the Onion Method!).

The first step is to calculate the "gap", i.e. the difference between 100% and our number.

Use this formula in cell B2:

We then use the value in A2 and this new value in B2 as the data inputs to the SPARKLINE function (e.g. 40% in A2 and 60% in B2). That's fine, but ultimately we want the pyramid chart to show in cell B2.

So, we use an array literal formula to capture both the original value and the "gap" value. This formula spills across cells B2 and C2:

(Note, if you're European-based you use a backslash "quot; instead of a comma "," inside this array literal formula.)

Next, wrap this array with the SPARKLINE function and specify the "bar" as the chart type.

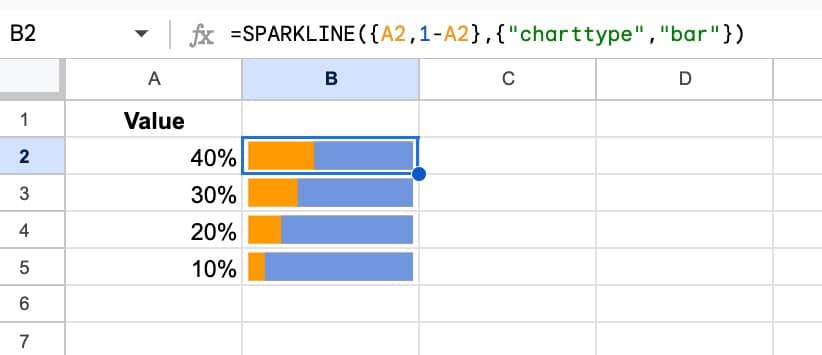

The output at this stage is:

We have two tasks left: 1) only highlight the value part of the chart (orange), not the gap part (blue), and 2) flip it to be right-aligned.

To hide the gap part, we can set the value of "color2" to be white. Note, adjust "color1" to change the orange color.

Here is the updated formula:

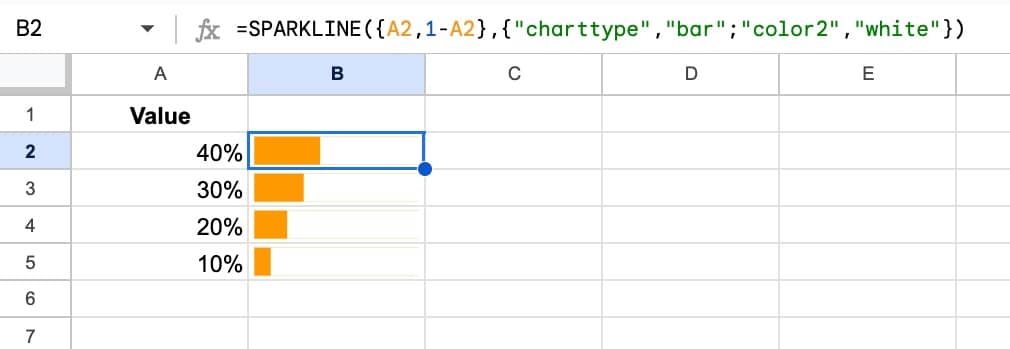

which gives an output:

Looking good!

Of course, we could stop here but let's see how to right align it.

There are two methods:

1. Set the chart right-to-left ("rtl") value
2. Flip the data inputs around

For method 1, set the "rtl" value to true, as shown in this formula:

This gives us this nice result:

However, the eagle-eyed amongst you might spot the orange border around the sparkline chart.

(Don't worry if you can't see it, it's very faint on these images, but you can see it more clearly in the Sheet.)

So, to mitigate this, we can flip the data around instead of using the "rtl" property.

Use this formula with the data values switched around:

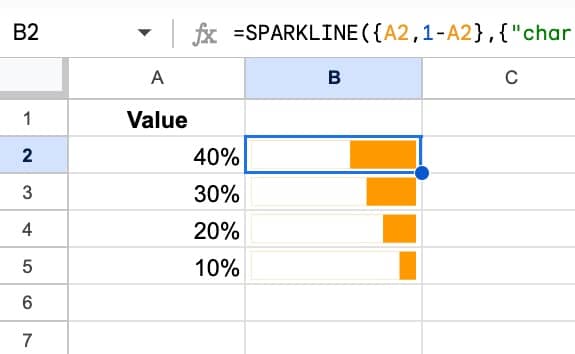

And now the output is:

Homework (optional of course! 😜)

See if you can turn this into an array formula, so it works for any rows with values. There are a few different ways to do this: with the traditional ArrayFormula function or the newer LAMBDA functions like BYROW.

Have fun!
